Metal Building Construction — Complete Project Guide for Pre-Engineered Metal Building Construction

For a standard single-span steel building project in Africa or Southeast Asia, the realistic total programme from confirmed order to weather-tight structure is approximately 14–20 weeks — roughly four to five months — provided that pre-construction site preparation has already begun. If site survey, permit application, and foundation contractor selection are starting from zero at the same time as the fabrication order, add 4–8 weeks for pre-construction preparation. Total programme to operational occupancy, including interior fit-out, is typically five to seven months. These figures assume a standard building and efficient customs clearance — complex buildings, slow permit processes, or extended customs clearance extend the total programme accordingly.

Foundation construction should begin as soon as the anchor bolt plan is issued by KAFA — which happens at the same time as the structural drawings, typically within 1–2 weeks of confirmed project parameters. Starting foundation construction in parallel with the fabrication period means the foundation will be complete and cured before the steel arrives on-site. Foundation construction including cure takes 4–6 weeks. Fabrication plus ocean transit from China to African or Southeast Asian ports is typically 7–11 weeks. Both can run in parallel with time to spare.

KAFA provides a complete technical documentation package with every building — erection drawings, anchor bolt installation guide, bolt torque specifications, panel installation sequence, and component identification schedule. This documentation enables an experienced local structural steel erection team to proceed without on-site supervision. For clients who require on-site technical support, KAFA can arrange a Technical Supervisor — an experienced KAFA engineer present on-site during the erection phase to guide the installation team, verify critical structural connections, and respond to field queries. Availability, cost, and scheduling are confirmed at the contract stage and depend on project location, duration, and visa arrangements. This is not a standard inclusion — it is a separately confirmed service.

Anchor bolt position tolerance in KAFA’s foundation plans is ±3 mm within the bolt group, and ±5 mm on the bolt group position relative to the column centre line. If anchor bolt positions deviate beyond these tolerances, the primary frame base plates cannot be installed without modification. Remediation options include cutting and repositioning bolts before the concrete fully cures, drilling new positions in the completed foundation, or modifying the base plate slotting with structural engineering sign-off. All remediation options add cost and programme time. The most effective approach is to verify anchor bolt positions immediately after the foundation is poured, before it reaches full cure, so that corrections are still practical.

For single-storey and low-rise buildings up to approximately 5,000 m², pre-engineered steel construction reaches weather-tight structure faster than concrete frame construction in virtually all markets. Concrete construction requires sequential on-site pours, cure periods, and formwork cycles that typically add four to eight months to the structural programme compared to the fabrication-plus-installation sequence for a steel building. The programme advantage of steel narrows when pre-construction preparation time is equal for both systems, but the on-site construction phase of a steel building is substantially faster. For buyers with a defined operational start date, the programme predictability of pre-engineered steel — where fabrication happens off-site under controlled conditions — is an additional advantage over on-site concrete construction where weather, labour, and material delays are harder to manage.

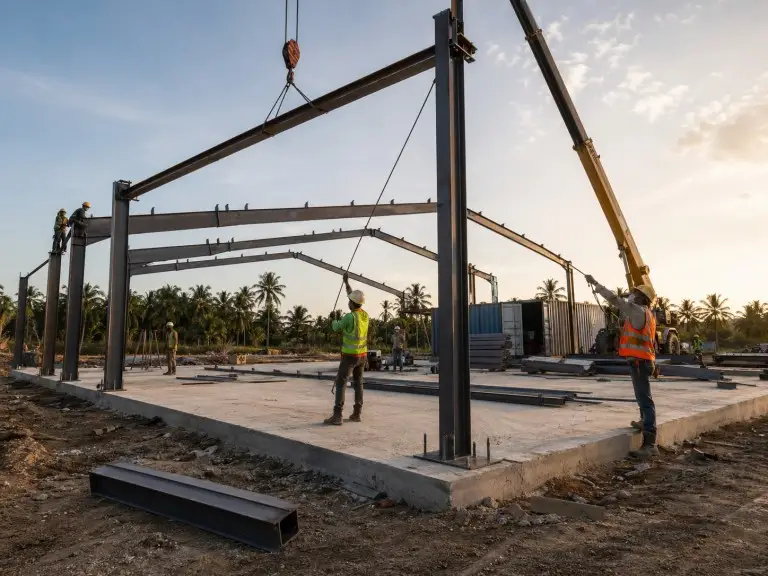

Primary frame erection requires a mobile crane rated for the heaviest structural member in the building. For standard single-span portal frames in the 18–30 m span range, a 25–50 tonne mobile crane is typically appropriate. Heavier frames for wide-span or crane-integrated industrial buildings require larger capacity equipment. Secondary steel and panel installation does not typically require crane equipment but does require scaffolding or elevated work platforms for roof and upper wall work. The erection manual supplied with the building package includes recommended crane capacity for the primary frame lift sequence. The client is responsible for sourcing and scheduling the crane and other installation equipment, coordinated with the installation contractor and the steel delivery date.
