Metal Building Foundation — Steel Building Foundation Requirements, Footing Types & Anchor Bolt Specs

KAFA provides four foundation-related technical documents: the anchor bolt plan showing precise bolt positions and projection heights, the column reaction load table giving axial force, shear force, and bending moment at each column base for the governing load combinations, base plate dimensions for each column type in the building, and foundation notes covering the design standard reference, concrete strength specification, and grouting requirements. These documents are issued at the same time as the structural drawings, giving the client’s civil engineer and contractor everything needed to begin foundation design and construction in parallel with the fabrication period.

Foundation design is the responsibility of a local licensed civil or structural engineer engaged by the client. KAFA provides the structural loads and anchor bolt geometry — the interface requirements — but does not perform geotechnical assessment, foundation structural design, or on-site foundation construction. This division of scope is stated explicitly in our project engagement terms. Clients in markets without established local civil engineering services should identify a foundation engineer before placing the fabrication order, because foundation design must begin before fabrication ends to keep the construction programme on schedule.

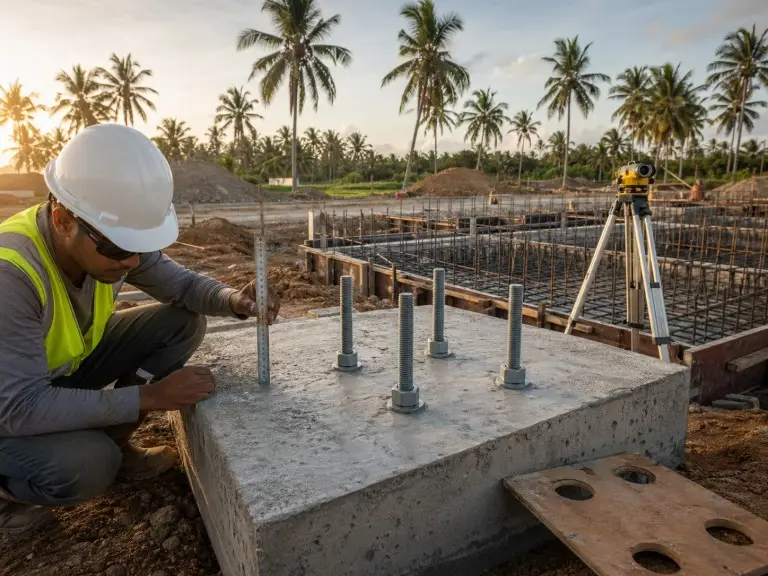

When anchor bolt positions exceed the ±3 mm plan tolerance or ±5 mm elevation tolerance, the primary frame base plates cannot be installed without modification. Remediation options include slotting or enlarging the base plate holes (which reduces structural capacity and requires engineering sign-off), drilling and epoxy anchoring replacement bolts into hardened concrete, or in severe cases, breaking out and re-pouring the affected footing section. The most cost-effective approach is to verify anchor bolt positions immediately after the pour and before the concrete reaches full cure — when correction is still practical. We request a surveyed position check report before confirming the shipping departure date.

The floor slab on grade is a structural element and must be designed for the specific imposed loads of the building’s intended use. For warehouses using forklifts, the governing load is typically the wheel load of the loaded forklift — for a 3-tonne capacity machine this can exceed 60 kN per wheel. For industrial buildings with heavy equipment, the equipment base reaction forces are the governing input. These design loads must be established before the slab is poured. The local civil engineer designs the slab in conjunction with the column footing design, coordinating slab thickness, reinforcement, and joint layout with the anchor bolt projection heights so the slab surface and bolt tops are at the correct relative levels.

Yes, for certain ground conditions. Expansive soils in East and Southern Africa can exert upward pressure on shallow foundations during wet seasons. Coastal soft alluvial soils in Lagos, Ho Chi Minh City, Manila, and similar locations have low bearing capacity that typically requires ground improvement or piling. In all tropical markets, concrete curing quality is more critical than in temperate climates — inadequate curing in high-temperature conditions limits strength development and reduces anchor bolt pullout capacity. We flag these conditions in our foundation notes for projects in affected regions and recommend that clients confirm the geotechnical investigation scope with their local engineer before committing to a foundation design approach.

Yes. For projects on good bearing soils, isolated column footings are straightforward and relatively low in cost. For projects on soft coastal soils requiring pile foundations, the foundation cost can equal or exceed the cost of the steel building structure itself. This is why we recommend completing a geotechnical investigation before finalising the project budget — a soil investigation typically costs a small fraction of the total project cost but identifies whether the foundation approach assumed in the budget estimate is achievable at the project site. We include a note to this effect in every project proposal for sites in coastal lowland or known problem soil areas.
